Types of Chromatography

Chromatography is the most widely used separation technique in chemical laboratories, where it is used in analysis, isolation and purification, and it is commonly used in the chemical process industry as a component of small and large-scale production. In terms of scale, at one extreme minute quantities of less than a nanogram are separated and identified during analysis, while at the other, hundreds of kilograms of material per hour are processed into refined products. It is the versatility of chromatography in its many variants that is behind its ubiquitous status in separation science, coupled with simplicity of approach and a reasonably well-developed framework in which the different chromatographic techniques operate.

Chromatography is essentially a physical method of separation in which the components of a mixture are separated by their distribution between two phases; one of these phases in the form of a porous bed, bulk liquid, layer or film is generally immobile (stationary phase), while the other is a fluid (mobile phase) that percolates through or over the stationary phase. A separation results from repeated sorption/desorption events during the movement of the sample components along the stationary phase in the general direction of mobile-phase migration. Useful separations require an adequate difference in the strength of the physical interactions for the sample components in the two phases, combined with a favourable contribution from system transport properties that control sample movement within and between phases. Several key factors are responsible, therefore, or act together, to produce an acceptable separation. Individual compounds are distinguished by their ability to participate in common intermolecular interactions in the two phases, which can generally be characterized by an equilibrium constant, and is thus a property predicted from chemical thermodynamics. Interactions are mainly physical in type or involve weak chemical bonds, for example dipole–dipole, hydrogen bond formation, charge transfer, etc., and reversible, since useful separations only result if the compound spends some time in both phases. During transport through or over the stationary phase, differential transport phenomena, such as diffusion and flow anisotropy (complex phenomena discussed later), result in dispersion of solute molecules around an average value, such that they occupy a finite distance along the stationary phase in the direction of migration. The extent of dispersion restricts the capacity of the chromatographic system to separate and, independent of favourable thermodynamic contributions to the separation, there is a finite number of dispersed zones that can be accommodated in the separation. Consequently, the optimization of a chromatographic separation depends on achieving favourable kinetic features if success is to be obtained.

Chromatography Definition

Chromatography is an important biophysical technique that enables the separation, identification, and purification of the components of a mixture for qualitative and quantitative analysis.

A wide range of chromatographic procedures makes use of differences in size, binding affinities, charge, and other properties to separate materials.

It is a powerful separation tool that is used in all branches of science and is often the only means of separating components from complex mixtures.

Chromatography is a very useful technique as it allows the separation of components of a mixture on the basis of their nature, structure, size, and other properties.

Chromatography, in general, is based on the principle that components of a mixture are separated when the mixture added to a mobile phase is moved through a stationary phase (which mostly is a solid surface), resulting in some components of the mixture being attached to the stationary phase. At the same time, the rest is passed along with the mobile phase.

Thus, there are two essential components of all chromatography techniques.

What is a stationary phase?

The stationary phase in chromatography is the phase that is either a solid or liquid particle attached to a glass or a metal surface on which the components of the mixture to be separated is absorbed selectively.

The term stationary refers to the fact that this phase remains stationary while the other phase moves.

Most substances used as stationary phases are porous, thus allowing the attachment of components during chromatography.

The stationary phase to be selected for a chromatographic process depends on the nature of the components to be separated and the type of chromatography.

Depending on the type of chromatography gel beads, thin uniform paper, silica, glass, some gases, or even liquid components are used as a stationary phase.

What is the mobile phase?

The mobile phase in chromatography is the phase that is either liquid or gas that is passed through a chromatographic system where the components of the mixture are separated at different raters by adsorbing them to the stationary phase.

The mobile phase is the solvent that carries the mixture as it moves down the stationary phase.

The term mobile indicates that the phase is moving down the chromatographic system, whereas the other phase remains stationary.

Substances used as mobile phases are selected for a chromatographic process depending on the nature of the components to be separated and the type of chromatography.

Alcohol, water, acetic acid, acetone, or some gases are the commonly used mobile phase in different chromatographic techniques.

1. Affinity chromatography

Affinity chromatography is a separation technique where the components of a mixture are separated based on their affinity towards the stationary phase of the system.

Principle of Affinity chromatography

This chromatography technique is based on the principle that components of a mixture are separated when the element having an affinity towards the stationary phase binds to the stationary phase. In contrast, other components are eluted with the mobile phase.

The substrate/ ligand is bound to the stationary phase so that the reactive sites for the binding of components are exposed.

Now, the mixture is passed through the mobile phase where the components with binding sites for the substrate bind to the substrate on the stationary phase while the rest of the components are eluted out with the mobile phase.

The components attached to the stationary phase are then eluted by changing the pH, ionic strength, or other conditions.

Steps of Affinity chromatography

The column is prepared by loading it with solid support like agarose or cellulose, onto which the substrate/ ligand with the spacer arm, is attached.

The mobile phase containing the mixture is poured into the column at a constant rate.

Once the process is complete, the ligand-molecule complex is eluted from the stationary phase by changing the conditions that favor the separation of ligand and components of the mixture.

Applications of Affinity chromatography

Affinity chromatography is used as a staple separation technique from enzymes and other proteins.

This principle is also applied in the in vitro antigen-antibody reactions.

This technique is used for the separation of components as well as the removal of impurities from a mixture.

Affinity chromatography can be used in the detection of mutation and nucleotide polymorphisms in nucleic acids.

Examples of Affinity chromatography

The purification of coli β-galactosidase from a mixture of proteins using the p-aminophenyl-1-thio-β-D-galactopyranosyl agarose as the affinity matrix.

The removal of excess albumin and α2-macroglobulin from the serum albumin.

2. Anion exchange chromatography

Anion exchange chromatography is the separation technique for negatively charged molecules by their interaction with the positively charged stationary phase in the form of ion-exchange resin.

Principle of Anion exchange chromatography

This technique is based on the principle of attraction of positively charged resin and the negatively charged analyte. Here the exchange of positively charged ions takes place to remove the negatively charged molecules.

The stationary phase is first coated with positive charges where the components of the mixture with negative charges will bind.

An anion exchange resin with a higher affinity to the negatively charged components then binds the components, displacing the positively charged resin.

The anion exchange resin-component complex then is removed by using different buffers.

Steps of Anion exchange chromatography

A column packed with positively charged resin is taken as the stationary phase.

The mixture with the charged particles is then passed down the column where the negatively charged molecules bind to the positively charged resins.

The anion exchange resin is then passed through the column where the negatively charged molecules now bind to the anion exchange resin displacing the positively charged resin.

Now an appropriate buffer is applied to the column to separate the complex of anion exchange resins and the charged molecules.

Applications of Anion exchange chromatography

Anion exchange chromatography is used to separate proteins and amino acids from their mixtures.

Negatively charged nucleic acids can be separated, which helps in further analysis of the nucleic acids.

This method can also be used for water purification where the anions are exchanged for hydroxyl ions.

Anion exchange resins can be used for the separation of metals as they usually have negatively charged complexes that are bound to the anion exchangers.

Examples of Anion exchange chromatography

The separation of nucleic acids from a mixture obtained after cell destruction.

The separation of proteins from the crude mixture obtained from the blood serum.

3. Cation exchange chromatography

Anion exchange chromatography is the separation technique for positively charged molecules by their interaction with negatively charged stationary phase in the form of ion-exchange resin.

Principle of Cation exchange chromatography

This technique is based on the principle of attraction of negatively charged resin and the positively charged analyte. Here the exchange of negatively charged ions takes place to remove the positively charged molecules.

The stationary phase is first coated with negative charges where the components of the mixture with positive charges will bind.

A cation exchange resin with a higher affinity to the positively charged components then binds the components, displacing the negatively charged resin.

The cation exchange resin-component complex then is removed by using different buffers.

Steps of Cation exchange chromatography

A column packed with negatively charged resin is taken as the stationary phase.

The mixture with the charged particles is then passed down the column where the positively charged molecules bind to the negatively charged resins.

The cation exchange resin is then passed through the column where the positively charged molecules now bind to the cation exchange resin displacing the negatively charged resin.

Now an appropriate buffer is applied to the column to separate the complex of cation exchange resins and the charged molecules.

Applications of Cation exchange chromatography

Cation exchange chromatography is used for the analysis of the products obtained after the hydrolysis of nucleic acids.

This can also be used for the separation of metals where the metal ions themselves bind to the negatively charged resins to remove the negatively charged complexes.

Cation exchange chromatography helps in purification of water by exchanging the positively charged ion by the hydrogen ions.

It is also used to analyze the rocks and other inorganic molecules.

Examples of Cation exchange chromatography

The separation of positively charged lanthanoid ions obtained from the earth’s crust.

The determination of total dissolved salts in natural waters by analyzing the presence of calcium ions.

4. Column chromatography

Column chromatography is the separation technique where the components in a mixture are separated on the basis of their differential adsorption with the stationary phase, resulting in them moving at different speeds when passed through a column.

It is a solid-liquid chromatography technique in which the stationary phase is a solid & mobile phase is a liquid or gas.

Principle of Column chromatography

This technique is based on the principle of differential adsorption where different molecules in a mixture have different affinities with the absorbent present on the stationary phase.

The molecules having higher affinity remain adsorbed for a longer time decreasing their speed of movement through the column.

However, the molecules with lower affinity move with a faster movement, thus allowing the molecules to be separated in different fractions.

Here, the stationary phase in the column chromatography also termed the absorbent, is a solid (mostly silica) and the mobile phase is a liquid that allows the molecules to move through the column smoothly.

Steps of Column chromatography

The column is prepared by taking a glass tube that is dried and coated with a thin, uniform layer of stationary phase (cellulose, silica).

Then the sample is prepared by adding the mixture to the mobile phase. The sample is introduced into the column from the top and is allowed to pass the sample under the influence of gravity.

The molecules bound to the column are separated by elution technique where either solution of the same polarity is used (isocratic technique), or different samples with different polarities are used (gradient technique).

The separated molecules can further be analyzed for various purposes.

Applications of Column chromatography

Column chromatography is routinely used for the separation of impurities and purification of various biological mixtures.

This technique can also be used for the isolation of active molecules and metabolites from various samples.

Column chromatography is increasingly used for the detection of drugs in crude extracts.

Examples of Column chromatography

Extraction of pesticides from solid food samples of animal origin containing lipids, waxes, and pigments.

Synthesis of Pramlintide which is an analog of Amylin, a peptide hormone, for treating type 1 and type 2 Diabetics.

Purification of bioactive glycolipids, showing antiviral activity towards HSV-1 (Herpes Virus).

5. Flash chromatography

Flash chromatography is a separation technique where smaller sizes of gel particles are used as stationary phase, and pressurized gas is used to drive the solvent through the column.

Principle of Flash chromatography

The principle of flash chromatography is similar to that of column chromatography, where the components are separated on the basis of their differential adsorption to the stationary phase.

The sample applied is passed by using a pressurized gas that makes the process faster and more efficient.

Molecules bind to the stationary phase on the basis of their affinity while the rest of the solvent is eluted out by applying the pressured gas which quickens the process.

Here, the stationary phase is solid, the mobile phase and the elution solution are liquid, and an additional pressurized gas is used.

Steps of Flash chromatography

The column is prepared by taking a glass tube that is dried and coated with a thin, uniform layer of stationary phase (cellulose, silica). The bottom and top of the column are packed with cotton wool to prevent the gel from escaping.

Then the sample is prepared by adding the mixture to the mobile phase. The sample is introduced into the column from the top, and a pumped sample is used to pass the sample at a constant rate.

The molecules bound to the column are separated by elution solution where either solution of the same polarity is used (isocratic technique), or different samples with different polarities are used (gradient technique).

The elution solvent is applied with a constant minimum pressure required to move the solute down the column.

The separated molecules can further be analyzed for various purposes.

Applications of Flash chromatography

Flash chromatography is used as a rapid and more efficient method of separation of components of different mixtures.

It is used for the removal of impurities from crude extracts of natural and synthetic mixtures.

6. Gas chromatography

Gas chromatography is a separation technique in which the molecules are separated on the basis of their retention time depending on the affinity of the molecules to the stationary phase.

The sample is either liquid or gas that is vaporized in the injection point.

Principle of Gas chromatography

Gas chromatography is based on the principle that components having a higher affinity to the stationary phase have a higher retention time as they take a longer time to come out of the column.

However, the components having a higher affinity to the stationary phase have less retention time as they move along with the mobile phase.

The mobile phase is a gas, mostly helium, that carries the sample through the column.

The sample once injected in converted into the vapor stage is then passed through a detector to determine the retention time.

The components are collected separately as they come out of the stationary phase at different times.

Steps of Gas chromatography

The sample is injected into the column where it is vaporized into a gaseous state. The vapourised component than mixes with the mobile phase to be carried through the rest of the column.

The column is set with the stationary phase where the molecules are separated on the basis of their affinity to the stationary phase.

The components of the mixture reach the detector at different times due to differences in the time they are retained in the column.

Applications of Gas chromatography

This technique is used to calculate the concentration of different chemicals in various samples.

This is used in the analysis of air pollutants, oil spills, and other samples.

Gas chromatography can also be used in forensic science to identify and quantify various biological samples found in the crime scene.

Examples of Gas chromatography

The identification of performance-inducing drug in the athlete’s urine.

The separation and quantification of a solid drug in soil and water samples.

7. Gel filtration chromatography/ Gel permeation chromatography/ Size exclusion chromatography/ Molecular sieve chromatography

Gel-filtration chromatography is a form of partition chromatography used to separate molecules of different molecular sizes.

This technique has also frequently been referred to by various other names, including gel-permeation, gel-exclusion, size- exclusion, and molecular- sieve chromatography.

Principle Gel filtration chromatography

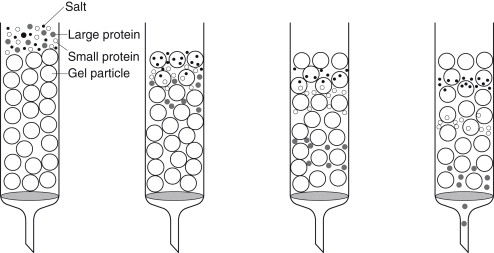

Molecules are partitioned between a mobile phase and a stationary phase as a function of their relative sizes.

The stationary phase is a matrix of porous polymer which have pores of specific sizes.

When the sample is injected with the mobile phase, the mobile phase occupies the pores of the stationary phase.

If the size of the molecules is appropriate enough to enter the pores, they remain in the pores partly or wholly.

However, molecules with a larger size are retained from entering the pores, causing them to be moved with the mobile phase, out of the column.

If the mobile phase used in an aqueous solution, the process is termed gel filtration chromatography.

If the mobile phase used is an organic solvent, it is termed as gel permeation chromatography.

Steps Gel filtration chromatography

The column is filled with semi-permeable, porous polymer gel beads with a well-defined range of pore sizes.

The sample, mixed with the mobile phase, is then injected into the column from the top of the column.

The molecules bound to the column are separated by elution solution where either solution of the same polarity is used (isocratic technique), or different samples with different polarities are used (gradient technique).

Elution conditions (pH, essential ions, cofactors, protease inhibitors, etc.) can be selected, which will complement the requirements of the molecule of interest.

Applications Gel filtration chromatography

One of the principal advantages of gel-filtration chromatography is that separation can be performed under conditions specifically designed to maintain the stability and activity of the molecule of interest without compromising resolution.

The absence of a molecule-matrix binding step also prevents unnecessary damage to fragile molecules, ensuring that gel-filtration separations generally give high recoveries of activity.

Because of its unique mode of separation, gel-filtration chromatography has been used successfully in the purification of proteins and peptides from various sources.

Gel-filtration chromatography has been used to separate various nucleic acid species such as DNA, RNA, and tRNA as well as their constituent bases, adenine, guanine, thymine, cytosine, and uracil.

Examples Gel filtration chromatography

The separation of recombinant human granulocyte colony-stimulating factor (rhG-CSF) from inclusion bodies in high yield by urea-gradient size-exclusion chromatography.

The separation of hen egg lysozyme using both acrylamide- and dextran-based gel columns.

8. High-performance liquid chromatography (HPLC)

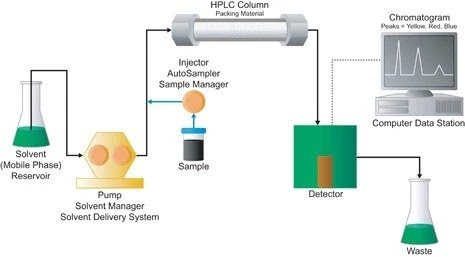

High-performance liquid chromatography is a modified form of column chromatography where the components of a mixture are separated on the basis of their affinity with the stationary phase.

Principle of High-performance liquid chromatography (HPLC)

This technique is based on the principle of differential adsorption where different molecules in a mixture have a varying degree of interactions with the absorbent present on the stationary phase.

The molecules having higher affinity remain adsorbed for a longer time decreasing their speed of movement through the column.

However, the molecules with lower affinity move with a faster movement, thus allowing the molecules to be separated in different fractions.

This process is slightly different from the column chromatography as in this case; the solvent is forced under high pressures of up to 400 atmospheres instead of allowing it to drip down under gravity.

Steps of High-performance liquid chromatography (HPLC)

The column is prepared by taking a glass tube that is dried and coated with a thin, uniform layer of stationary phase (cellulose, silica).

Then the sample is prepared by adding the mixture to the mobile phase. The sample is introduced into the column from the top, and a high-pressure pump is used to pass the sample at a constant rate.

The mobile phase then moves down to a detector that detects molecules at a certain absorbance wavelength.

The separated molecules can further be analyzed for various purposes.

Applications of High-performance liquid chromatography (HPLC)

High-performance liquid chromatography is used in the analysis of pollutants present in environmental samples.

It is performed to maintain product purity and quality control of various industrial productions.

This technique can also be used to separate different biological molecules like proteins and nucleic acids.

The increased speed of this technique makes the process faster and more effective.

Example of High-performance liquid chromatography (HPLC)

High-performance liquid chromatography has been performed to test the efficiency of different antibodies against diseases like Ebola.

9. Hydrophobic interaction chromatography

Hydrophobic interaction chromatography is the separation technique that separates molecules on the basis of their degree of hydrophobicity.

Principle of Hydrophobic interaction chromatography

The principle of hydrophobic interaction chromatography is based on the interaction between two molecules with hydrophobic groups.

Here, the stationary phase is solid support applied with both hydrophobic and hydrophilic groups.

The solvent molecules containing hydrophobic regions interact with the hydrophobic groups, thus separating them from the molecules with hydrophilic groups.

The interaction is then reversed by applying an elution solution with decreasing salt gradient, which causes the molecules with hydrophobic groups to be separated from the stationary phase.

Steps of Hydrophobic interaction chromatography

The column is prepared with a glass tube applied with solid support like silica gel, upon which hydrophobic groups like phenyl, octyl butyl, are attached.

The sample is prepared by adding the mixture to the mobile phase.

The sample is then injected into the column from the top of the column.

The molecules with hydrophobic groups form an interaction with the hydrophobic groups of the stationary phase. In contrast, the molecules without such groups move out of the column with the mobile phase.

Then a particular elution solution with decreasing salt gradient is then passed into the column that removes the bound molecules from the stationary phase.

Applications of Hydrophobic interaction chromatography

Hydrophobic interaction chromatography is extremely important for the separation of proteins with hydrophobic groups.

This technique is more appropriate than other methods, as this technique results in minimum denaturation activities.

Similarly, this method can also be applied to the separation of other organic compounds with hydrophobic groups.

This allows the separation of hydrophilic and hydrophobic biological molecules from each other.

Example of Hydrophobic interaction chromatography

The separation of plant proteins from the crude extracts.

10. Ion exchange chromatography

Ion exchange chromatography is the separation technique for charged molecules by their interaction with the oppositely charged stationary phase in the form of ion-exchange resin.

Principle of Ion exchange chromatography

This technique is based on the principle of attraction of charged resin and the oppositely charged analyte. Here the exchange of negatively/ positively charged ions takes place to remove the charged molecules.

The stationary phase is first coated with particular charges where the components of the mixture with opposite charges will bind.

A cation or anion exchange resin with a higher affinity to the charged components then binds the components, displacing the oppositely charged resin.

The cation or anion exchange resin-component complex then is removed by using different buffers.

Steps of Ion exchange chromatography

A column packed with charged resin that can either be positively charged or negatively charged is taken as the stationary phase.

The mixture with the charged particles is then passed down the column where the charged molecules bind to the oppositely charged resins.

If a cation exchange resin is used, the positively charged molecules now bind to the cation exchange resin displacing the negatively charged resin.

Similarly, if an anion exchange resin is used, the negatively charged molecules bind to the anion exchange resin displacing the positively charged resin.

Now an appropriate buffer is applied to the column to separate the complex of charged exchange resins and the charged molecules.

Applications of Ion exchange chromatography

Ion exchange chromatography is used in the purification of water where the positively charged ions are replaced by hydrogen ions, and the negatively charged ions are replaced by hydroxyl ions.

This method also works as an effective method for the analysis of the products formed after hydrolysis of nucleic acids.

The separation of metals and other inorganic compounds is also facilitated by the ion-exchange chromatography.

Examples of Ion exchange chromatography

The separation of positively charged lanthanoid ions obtained from the earth’s crust.

The separation of proteins from the crude mixture obtained from the blood serum.

11. Liquid chromatography

Liquid chromatography is a separation technique where the mobile phase used is liquid, and the separation can take place either in a column or a plain surface.

Principle of Liquid chromatography

The process of liquid chromatography is based on the principle for the affinity of the molecules to the mobile phase.

If the components to be separated have a higher affinity to the mobile phase, the molecules move along with the mobile phase and come out of the column faster.

However, if the components have a lower degree of interaction with the mobile phase, the molecules move slowly and thus come out of the column later.

Thus, if two molecules in a mixture have different polarities and the mobile phase is of a distinct polarity, the two molecules will move at different speeds through the stationary phase.

Steps of Liquid chromatography

The column or paper is prepared where the stationary phase (cellulose or silica) is applied on the solid support.

The sample is added to the liquid mobile phase, which is then injected into the chromatographic system.

The mobile phase moves through the stationary phase before coming out of the column or the edge of the paper.

An elution solution is applied to the system to separate the molecules from the stationary phase.

Applications of Liquid chromatography

Liquid chromatography is an effective method for the separation of a colored solution as they form two separate bands after separation.

This method can also be used over other techniques as it is quite simple and less expensive.

It can be used for the separation of solid molecules that are insoluble in water.

Examples of Liquid chromatography

High-performance liquid chromatography is a modified form of liquid chromatography that is used in the research regarding biological molecules.

12. Paper chromatography

Paper chromatography is a separation technique where the separation is performed on a specialized paper.

Principle of Paper chromatography

Paper chromatography is of two types based on two different principles.

The first is the paper adsorption chromatography that is based on the varying degree of interaction between the molecules and the stationary phase.

The molecules having higher affinity remain adsorbed for a longer time decreasing their speed of movement through the column.

However, the molecules with lower affinity move with a faster movement, thus allowing the molecules to be separated in different fractions.

The second type of paper chromatography is the paper partition chromatography. It is based on the principle that the moisture on the cellulose paper acts as a stationary phase for the molecules moving with the mobile phase.

The separation of the molecules is thus based on how strongly they adsorb onto the stationary phase.

An additional concept of ‘retention factor’ is applied during the separation of molecules in the paper chromatography.

The retention value for a molecule is determined as a ratio of distance traveled by the molecule to the distance traveled by the mobile phase.

The retention value of different molecules can be used to differentiate those molecules.

Steps of Paper chromatography

The stationary phase is selected as a fine quality cellulosic paper.

Different combinations of organic and inorganic solvents are taken as the mobile phase.

About 2-200 µl of the sample solution is injected at the baseline of the paper, and it is allowed to air dry.

The sample loaded paper is then carefully dipped into the mobile phase not more than the height of 1 cm.

After the mobile phase reaches near the edge of the paper, the paper is taken out.

The retention factor is calculated, and the separated components are detected by different techniques.

Applications of Paper chromatography

Paper chromatography is performed to detect the purity of various pharmaceutical products.

It can also be employed to detect contamination in various samples, like food and beverages.

This method can also be used for the separation of impurities from various industrial products.

The analysis of the reaction mixtures in chemical labs is also conducted via paper chromatography.

Examples of Paper chromatography

Paper chromatography is used in the separation of mixtures of inks or other colored drinks.

13. Reverse-phase chromatography

Reverse-phase chromatography is a liquid chromatography technique where the separation of molecules is achieved through hydrophobic interaction between the liquid mobile phase and the stationary phase.

Principle of Reverse-phase chromatography

The principle of reverse phase chromatography is based on the interaction between two molecules with hydrophobic groups.

Here, the stationary phase is solid support applied with both hydrophobic and hydrophilic groups.

The solvent molecules containing hydrophobic regions interact with the hydrophobic groups, thus separating them from the molecules with hydrophilic groups.

The interaction is then reversed by applying an elution solution with decreasing salt gradient, which causes the molecules with hydrophobic groups to be separated from the stationary phase.

Steps of Reverse-phase chromatography

The column is prepared with a glass tube applied with solid support like silica gel, upon which hydrophobic groups like phenyl, octyl butyl, are attached.

The sample is prepared by adding the mixture to the mobile phase of organic and inorganic solvents.

The sample is then injected into the column from the top of the column.

The molecules with hydrophobic groups form an interaction with the hydrophobic groups of the stationary phase. In contrast, the molecules without such groups move out of the column with the mobile phase.

Then a particular elution solution with decreasing salt gradient is then passed into the column that removes the bound molecules from the stationary phase.

Applications of Reverse-phase chromatography

Reverse chromatography, in combination with high-performance liquid chromatography, is increasingly used for the separation of biomolecules.

This is also used in the study of the analysis of drugs, metabolites, and active molecules.

It can also be used to remove impurities from various environmental samples.

Examples of Reverse-phase chromatography

Hydrophobic interaction chromatography is an example of reverse phase chromatography where this technique is used to separate proteins from their mixtures.

14. Thin-layer chromatography (TLC)

Thin-layer chromatography is a separation technique where the stationary phase is applied as a thin layer on a solid support plate with a liquid mobile phase.

Principle of Thin-layer chromatography (TLC)

This chromatography technique is based on the principle that components of a mixture are separated when the component having an affinity towards the stationary phase binds to the stationary phase. In contrast, other components are eluted with the mobile phase.

The substrate/ ligand is bound to the stationary phase so that the reactive sites for the binding of components are exposed.

Now, the mixture is passed through the mobile phase where the components with binding sites for the substrate bind to the substrate on the stationary phase while the rest of the components are eluted out with the mobile phase.

After separation, the molecules are seen as spots at a different location throughout the stationary phase.

The detection of molecules is performed by various techniques.

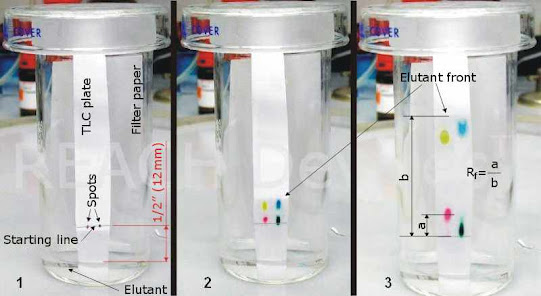

Steps of Thin-layer chromatography (TLC)

The stationary phase is uniformly applied on the solid support (glass, thin plate or aluminum foil) and dried.

The sample is injected as spots on the stationary phase about 1 cm above the edge of the plate.

The sample loaded plate is then carefully dipped into the mobile phase not more than the height of 1 cm.

After the mobile phase reaches near the edge of the plate, the plate is taken out.

The retention factor is calculated as in paper chromatography, and the separated components are detected by different techniques.

Applications of Thin-layer chromatography (TLC)

Thin-layer chromatography is routinely performed in laboratories to identify different substances present in a mixture.

This technique helps in the analysis of fibers in forensics.

TLC also allows the assay of various pharmaceutical products.

It aids in the identification of medicinal plants and their composition.

References

Wilson, K., Walker, J. (2018). Principles and Techniques of Biochemistry and Molecular Biology (8 eds.). Cambridge University Press: New York.

Ó’Fágáin, C., Cummins, P. M., & O’Connor, B. F. (2017). Gel-Filtration Chromatography. Methods in molecular biology (Clifton, N.J.), 1485, 15–25. https://doi.org/10.1007/978-1-4939-6412-3_2

Breaking News

Types of Chromatography - Principle, Steps, Applications, Examples

Chromatography Definition

What is a stationary phase?

What is the mobile phase?
